What is an SMT Stencil?
SMT stencil, also called PCB stencil, is a precision stainless-steel stencil used in PCB assembly. It features laser-cut apertures aligned with PCB pads to ensure accurate and consistent solder paste deposition, minimizing defects such as bridging or misalignment and enabling reliable, high-quality PCB assembly.
GOJGO Stencil Overview

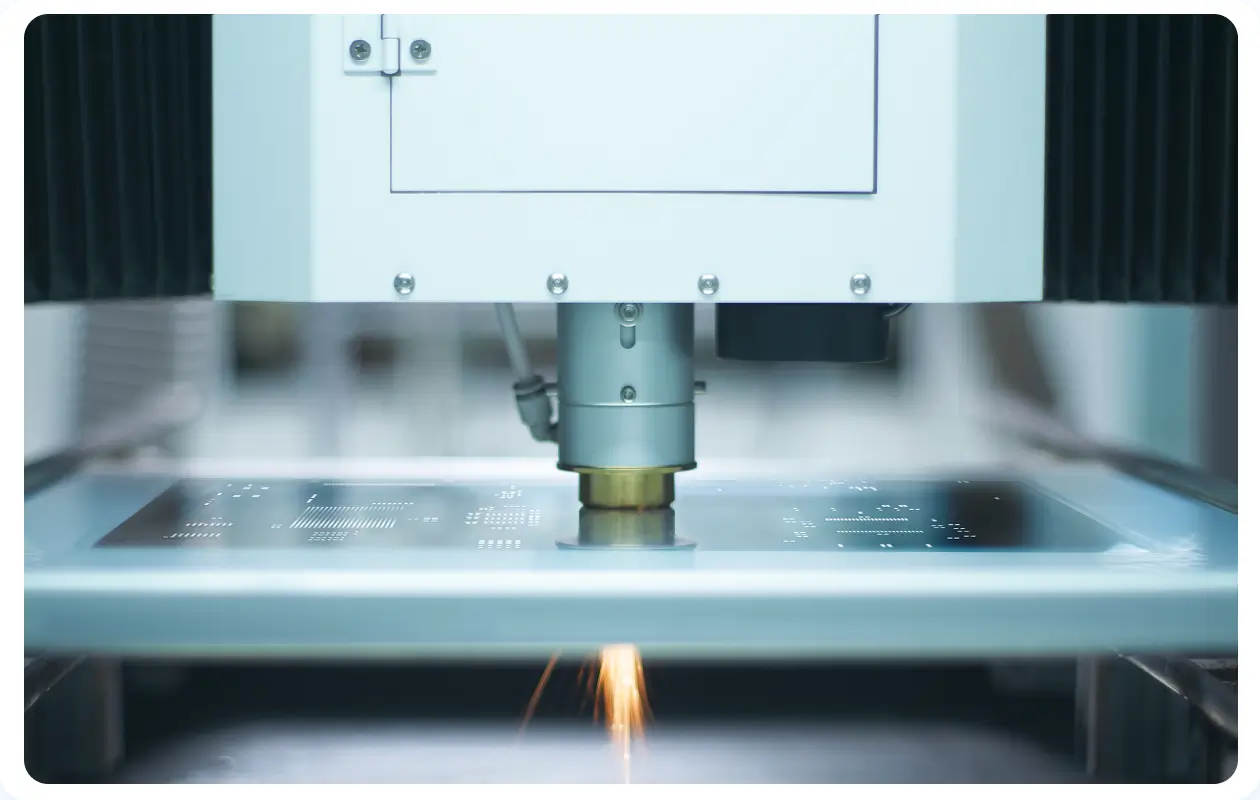

GOJGO stencil service is the earliest and most mature manufacturing lines developed after our PCB prototyping service, trusted by millions of engineers worldwide. To ensure consistent and accurate SMT printing, we continuously invest in advanced manufacturing equipment, including over 30 high-precision laser cutting machines, and use 304 HTA stainless steel with tolerances as tight as ±0.003mm.
We specialize in precision laser-cut stencil technology, supporting both solder paste and adhesive (red glue) applications for high-quality PCB assembly. GOJGO offers a wide range of circuit board stencil customization options, such as framed and frameless stencils, step stencils, nano-coating, electropolishing and ultrasonic-resistant adhesive. These enhancements improve solder paste release, increase first-pass SMT yield and optimize printing performance for mixed-technology and high-density PCBs.
GOJGO Stencil Manufacturing Capabilities
| Features | Capabilities |
|---|

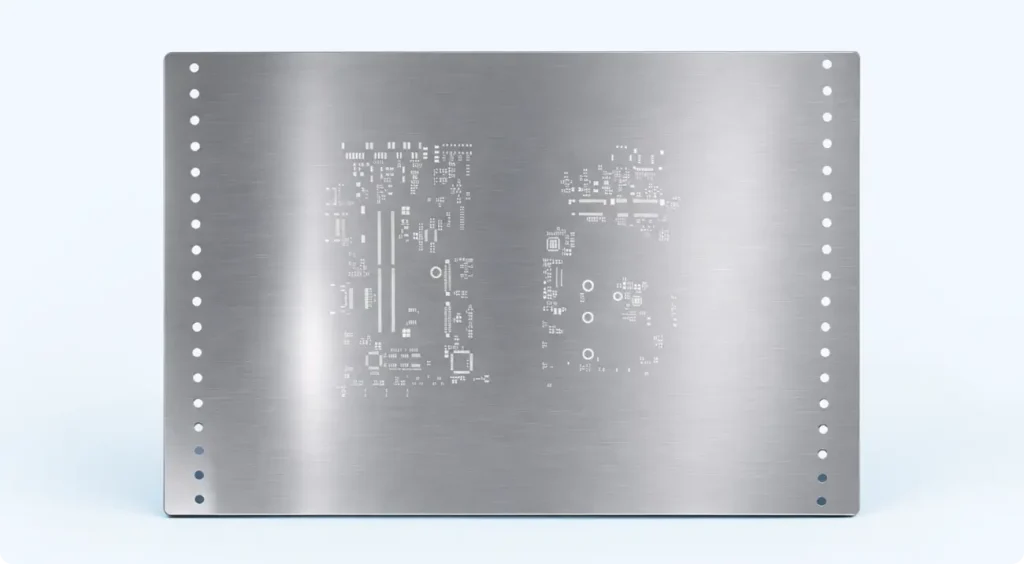

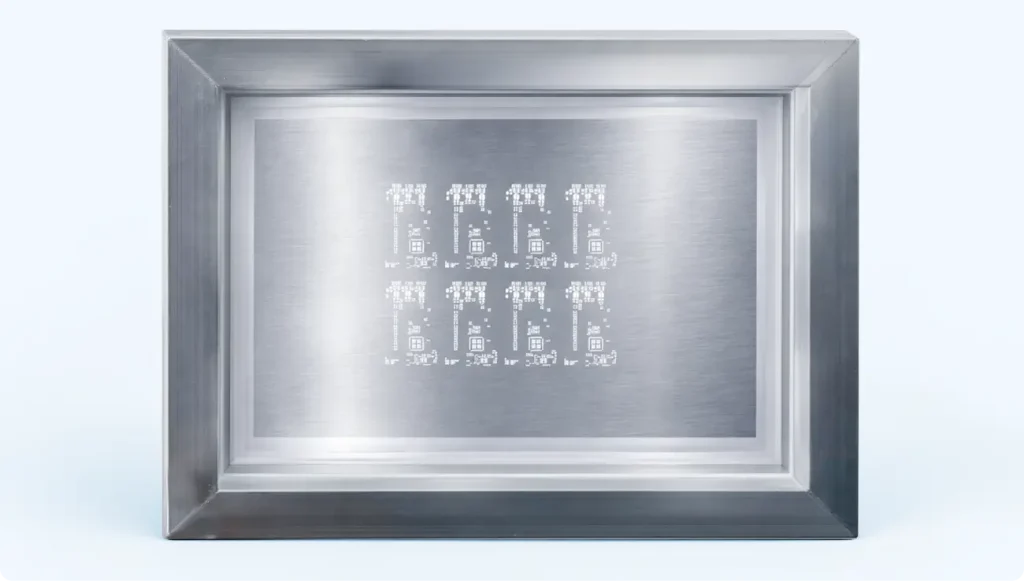

| Stencil Types | Framework & Non-Framework |
| Stencil Material | 304 HTA stainless steel |
| Minimum Aperture Size | >0.08mm |
| Cutting Tolerance | ±0.003mm |
| Cutting Technology | Precision Laser Cutting |
| Manufacturing Capabilities | Over 30 laser cutting machines in operation |
| Stencil File Formats | Gerber files (with solder paste layers), DXF |
| Nano-Coating | Available for all types of stencils |
| Step Stencil | Only available for stencils with framework |
| Ultrasonic-Resistant Adhesive | Only available for stencils with framework |
| Build Time | Fastest build time: 12 hoursNote: The final build time may vary based on the selected stencil specifications and order confirmation time. |
| Stencil Delivery | If you order a stencil together with PCBs, stencil size within 280mm × 280mm can be shipped together with the PCBs.However, if you choose express shipping (e.g., DHL, FedEx), stencil size exceeding 280mm × 280mm will be shipped separately. |
